Images

There is one way to write an image: Markdown’s ![alt text](source "title"). An image standing alone as its own paragraph can be followed by a {…} attribute line, making it a captioned figure, a zoom candidate, a numbered figure, or a derivative processed by Hugo. The theme has no image shortcode.

Shortest form

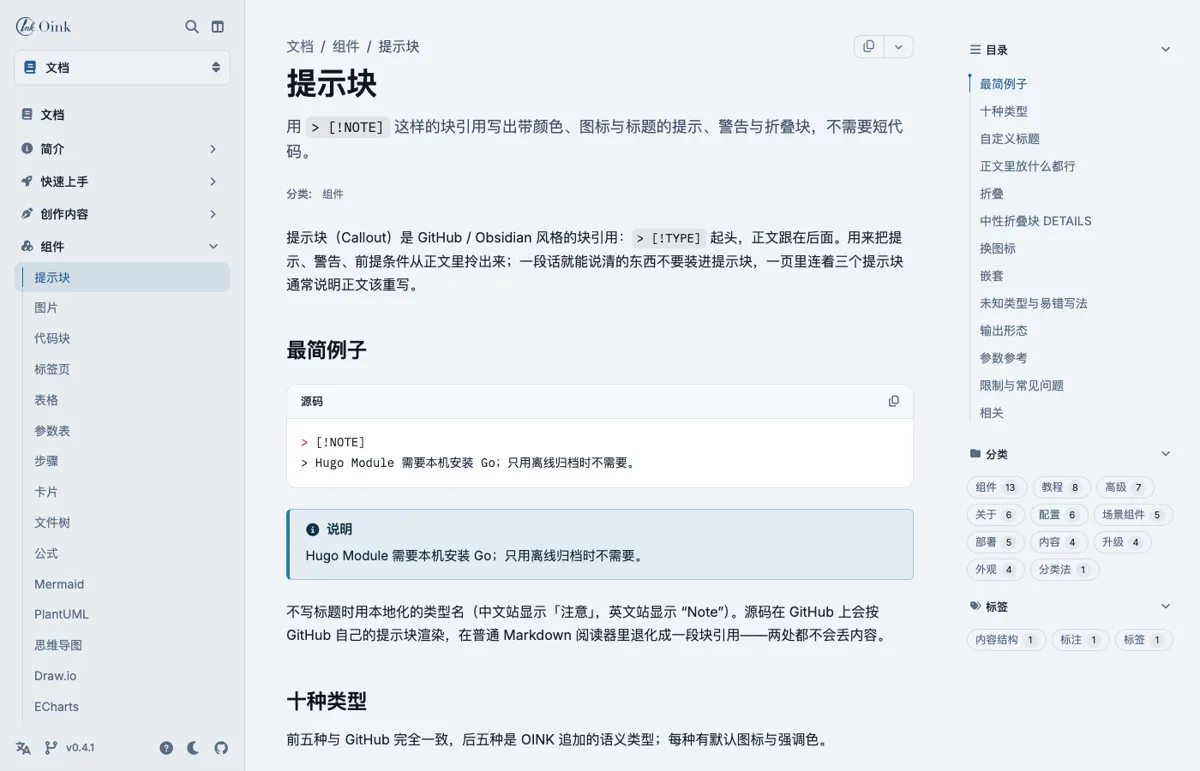

![The OINK documentation shell: sidebar, article and table of contents](oink-shell.webp)

This image sits in the same directory as the page (a page bundle), so the theme reads its intrinsic size and writes width/height, and the page does not shift while loading; every image is lazy-loaded. Alternative text serves screen readers and search engines and should always be written; an empty alt marks a decorative image, which zoom skips.

Where images come from

Sources resolve in the following order, written the same way in each case:

A relative path is looked up first as a page resource and then as a global resource; failing both, it is emitted as a static path. The theme does not check whether a static path or a remote URL exists. Only an image that asks for processing (command=) fails the build when its resource cannot be found.

Inline versus block

An image inside a line of text is an inline image, rendered as one <img> and unable to carry attributes; an image standing alone as its own paragraph is a block image and can carry an attribute line.

This little one ![shell thumbnail](oink-mini.webp) sits inside a sentence — an inline image.

![shell thumbnail](oink-mini.webp)
{width="100" height="64"}

This little one sits inside a sentence — an inline image.

An inline image displays at its own size (50×32 here). An SVG with no intrinsic size stretches to the container width when inlined, so an SVG belongs as a block image with explicit width/height.

Captions

An attribute line with caption="…" renders the image as a <figure> plus a <figcaption>. A caption is plain text and is not parsed as Markdown.

![Release card: version, publication date and asset buttons](release-note.webp)
{caption="The release card is generated from data/download and the page's release record"}

A Markdown "title" keeps its own meaning (a hover tooltip) and never becomes the caption.

Size

width/height are positive integers overriding the resource’s own dimensions: they give a static or remote image a placeholder box so the page does not shift, or display a large image smaller (the browser scales it; the file is unchanged).

![The OINK home page illustration (light)](/images/hero-light.webp)
{width="450" height="300" caption="A 900×600 illustration from static/images/ shown at half size"}

Processed images

Page resources and global resources can be processed by Hugo at build time: command and options must both be given, the command is one of Fit, Resize, Fill or Crop, and the options are Hugo’s image processing string. The rendered src is the derivative; with zoom enabled the dialog opens the original.

![shell thumbnail](oink-shell.webp)
{command="Fit" options="300x150" caption="Fit 300x150: scaled to fit inside a 300×150 box"}

![the left half of the shell](oink-shell.webp)
{command="Fill" options="300x150 Left" caption="Fill 300x150 Left: fills the box, cropped from the left"}

Static paths, remote URLs and SVG cannot be processed, and writing command for one fails the build. The options syntax (anchors, quality, format conversion, as in 300x150 webp q80) is in Hugo image processing.

Linked images

Two forms, for different purposes:

• No caption, and the image itself is the link: wrap it in a Markdown link, [![alt](src)](href).
• A captioned figure that is clickable as a whole: add link="…" to the attribute line (which requires caption or num).

[![Go to the highlights page](oink-shell.webp)](/docs/about/features/)

![Release card](release-note.webp)
{caption="Click the image for the releases and downloads guide" link="/docs/write/releases/"}

A linked image never zooms. Writing link= with no caption fails the build, and the error points at [![…](…)](…) instead.

Numbered figures

Numbered figures are for books and long manuals: add num to the attribute line, with an optional #id. The number is a string the author writes (2-1, 3.4) and the theme never counts automatically; the caption gains a localized “Figure 2-1” prefix, and #id defaults to fig-<num>. Reference it from the prose with an ordinary link [Figure 2-1](#fig-2-1) or the xref shortcode; a whole-book list of figures is in Books.

![Release card](release-note.webp)
{#fig-release num="2-1" caption="The release card: version, date and assets"}

See [Figure 2-1](#fig-release).

See Figure 2-1.

A numbered figure can be a processed image at the same time (num plus command), and can carry a link.

Zoom

Image zoom is off by default. Once the site enables it, block images, figures and gallery images that have alt text become clickable buttons that open the full image in a native <dialog> (Esc closes it, focus returns where it was). This page turns it on in its front matter, so every image above is clickable.

params:
  ui:
    image_zoom: true

image_zoom: false

Images that never zoom: inline images, decorative images with an empty alt, linked images, and images marked data-no-zoom. The runtime loads only when the page really has a candidate; print, Markdown and RSS have no dialog.

![](oink-shell.webp)
{width="150" height="75"}

Light and dark images

The theme has no parameter for swapping an image by colour scheme. Where two images are needed, give each a class and show one per scheme with [data-bs-theme="dark"] in the site’s CSS:

![Sidebar (light)](oink-shell.webp)
{class="only-light"}

![Sidebar (dark)](oink-shell.webp)
{class="only-dark"}

[data-bs-theme="dark"] .only-light,
:not([data-bs-theme="dark"]) .only-dark { display: none; }

class is passed through by the theme untouched, for the site’s CSS to use.

Output

Parameter reference

The attribute line {…} (the line immediately after a block image):

style, on*, alt, title, src and any other key on the attribute line fail the build (alt, title and src belong to the Markdown image itself).

Limits

• A caption holds no Markdown: every public string parameter is plain text, so rich explanation goes in a paragraph below the image.
• title is not a caption: the c in ![a](b "c") is a hover tooltip.
• Processing applies to resources only: an image in static/ that needs processing moves to the page bundle or assets/.
• Remote images are never downloaded at build time.
• Zoom has no drag, pan or previous / next; a set of related images uses a gallery.
